Installing Ceiling Light Fixtures: Mounting, Wiring and Height

Installing ceiling light fixtures is often the quickest way to transform a room. A well-placed pendant anchors a table, the right flush mount lights without crushing the space, a chandelier gives a living room presence. The job itself calls for method: the fixture hangs over your head on its mounting, and it connects to the electrical circuit.

This guide explains installing a ceiling light on an existing electrical box: turning off the power, identifying the connection, choosing the mounting for your ceiling, then setting the height. If the light point has to be moved or added, or if the wiring is old, hand the job to an electrician.

Before installing ceiling light fixtures: safety and tools

Always work with the power off. The wall switch is not enough: switch off the lighting circuit's breaker at the panel, or the main breaker if nothing is labeled, then test every wire with a voltage tester. Leave a note on the panel so nobody turns the power back on. Follow your local electrical code throughout.

• a stable step ladder, tall enough to work with your arms bent;
• insulated screwdrivers, wire strippers and wire connectors;
• a drill, anchors suited to the ceiling, and safety glasses;
• a second person to hold the fixture during wiring, as soon as it weighs more than a few pounds.

Before buying, measure the ceiling height and check the fixture's weight on its product page. Those two numbers decide which type of fixture you can choose and how it must be mounted.

Identify your ceiling box and wiring

Look up and you will find one of these cases. In most homes, the wires come out of an electrical box recessed in the ceiling, with a crossbar or mounting bracket screwed to it. In France and some other countries, newer installations use a DCL box, a standard socket the fixture's plug clips into, often with a built-in hook. In older homes, the wires may simply come out of the ceiling, sometimes joined with a terminal block. In every case, identify the colors: in North America, hot is usually black, neutral white and ground green or bare copper; in Europe, live is brown, black or red, neutral blue and earth green and yellow.

If the colors do not match, if there are only two wires for a metal fixture, or if the insulation looks damaged, stop. That is the time to have the circuit checked by an electrician.

Installing a ceiling light, step by step

1. Turn off and test. Breaker off, no voltage confirmed on every wire.
2. Remove the old fixture. Take a photo of the wiring, then unscrew the canopy while supporting the fixture.
3. Fix the support. Depending on the model, a mounting bracket for a flush mount, a hook for a pendant or a chandelier. The weight rests on this support, never on the wires.
4. Connect. Hot to hot, neutral to neutral, ground to the ground screw or lead, or clip the plug onto the socket if your box uses one. On a Class II fixture, marked with a double square, the ground wire stays capped off in a connector.
5. Tuck in and close. Fold the wires into the canopy without pinching them, and screw the canopy against the ceiling.
6. Test. Bulb at or below the stated maximum wattage, power back on, check the switch.

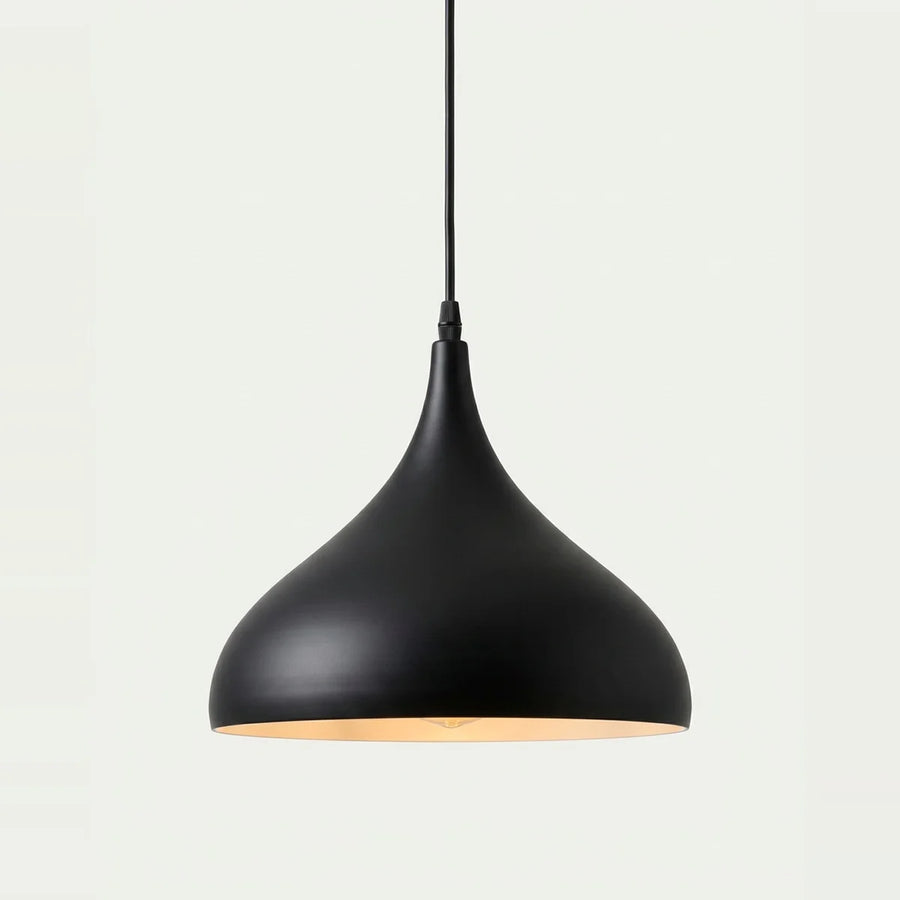

Installing a chandelier or pendant: adjusting the cord

For a pendant or when installing chandelier models on a chain, first hang the canopy or loop on the hook, connect, then set the length. Most models include a cord grip in the canopy: slide the cord to the right height and lock it. The excess is stored in the canopy or shortened, only if the instructions allow it. Always measure from the bottom of the shade, not from the bulb.

Installing a flush mount

A flush mount fixes to a bracket or plate screwed into the ceiling box or ceiling around the wires. Mark the holes with the plate in place, and align it with the walls if the fixture is square or rectangular. Glass models go on last, once the connection has been tested.

Which mounting for your ceiling and the fixture weight?

When installing a ceiling light, the support matters as much as the fixture. In a solid concrete slab, a plastic or metal anchor holds most fixtures. In hollow block ceilings, use anchors designed for hollow materials. Under a wood ceiling, screw straight into a joist, located with a stud finder or by probing.

Drywall calls for the most care. Expansion or toggle anchors suit a light flush mount, within the load rating given by their maker. For a glass pendant, a chandelier or any heavy fixture, anchor the hook into a joist or the ceiling framing, or have blocking added. Never hang a chandelier from an electrical box without checking the weight that box is rated for.

Chandelier height and pendant height

Height is measured from the bottom of the fixture to the tabletop or the floor. These guides are visual-comfort conventions, not electrical rules.

So the pendant height above island counters runs a little higher than over a table, since you stand at an island and sit at a table.

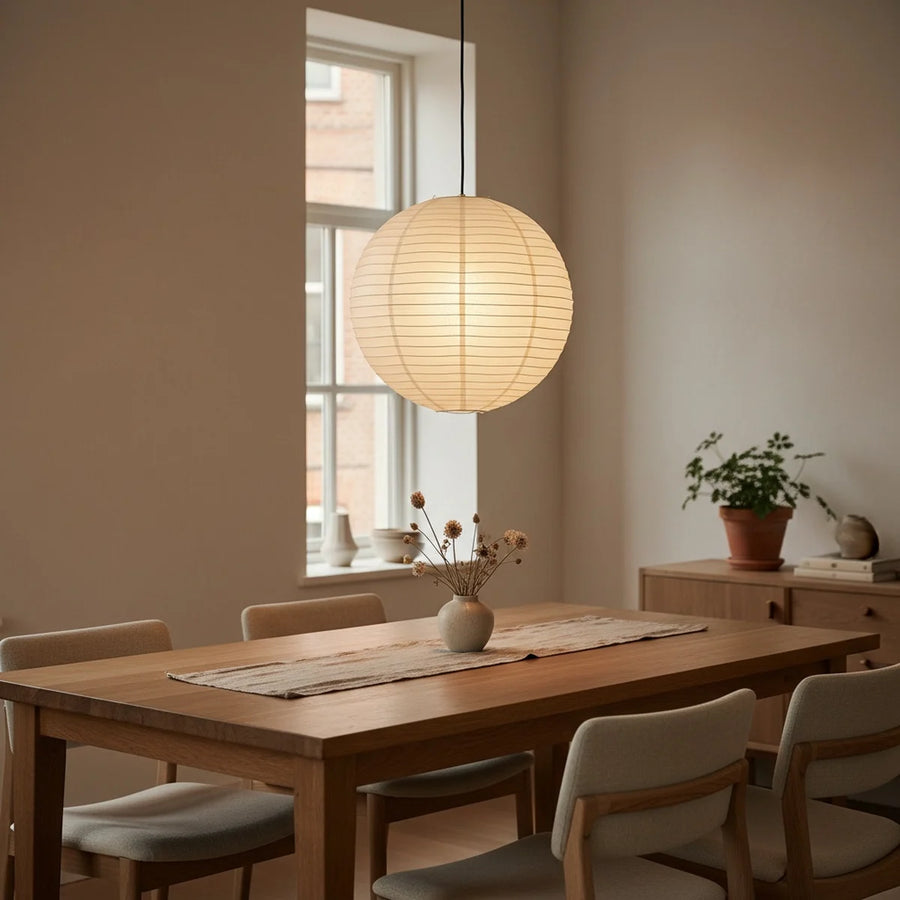

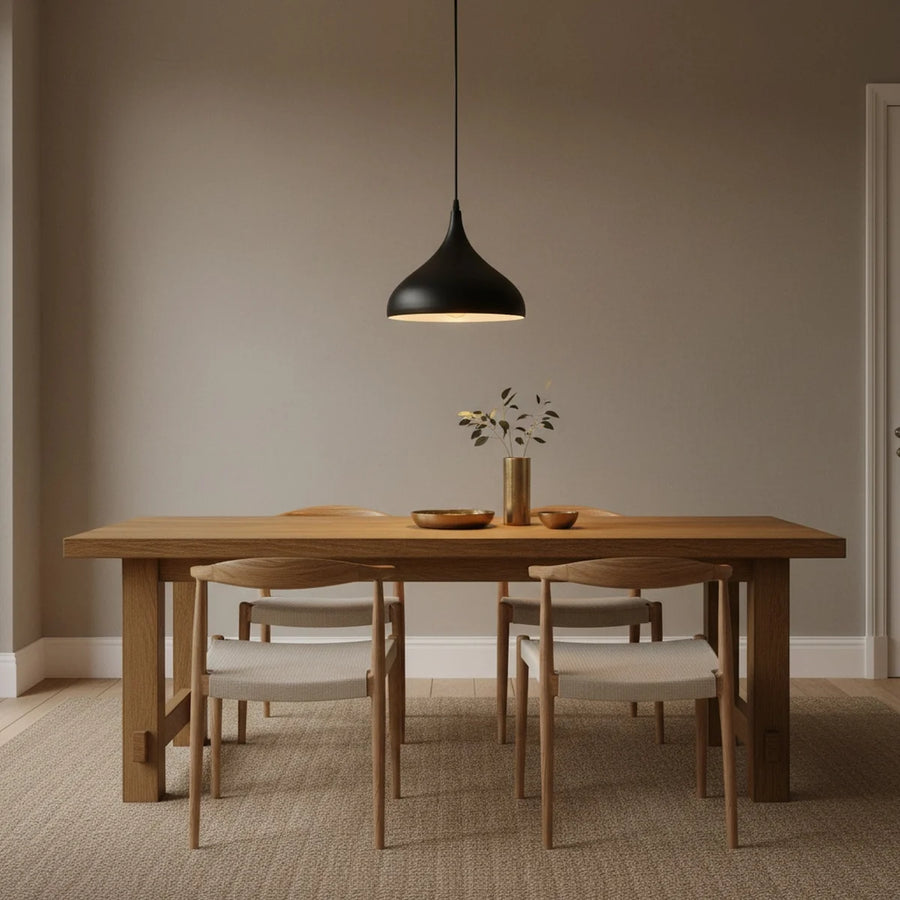

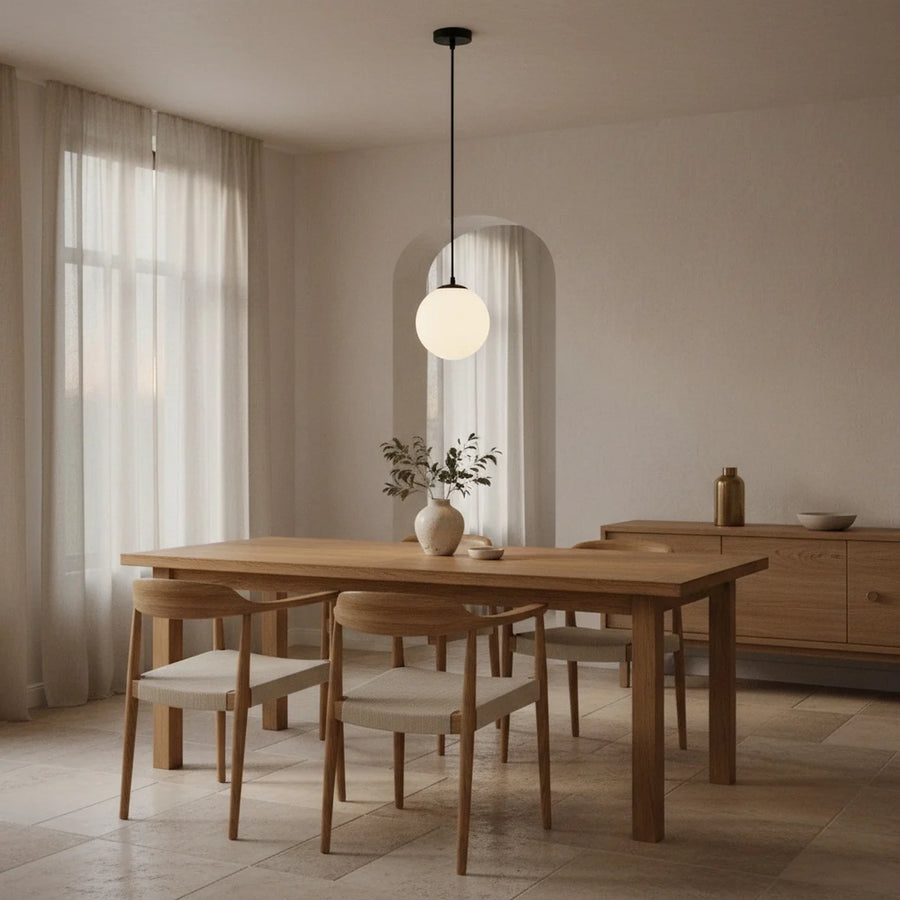

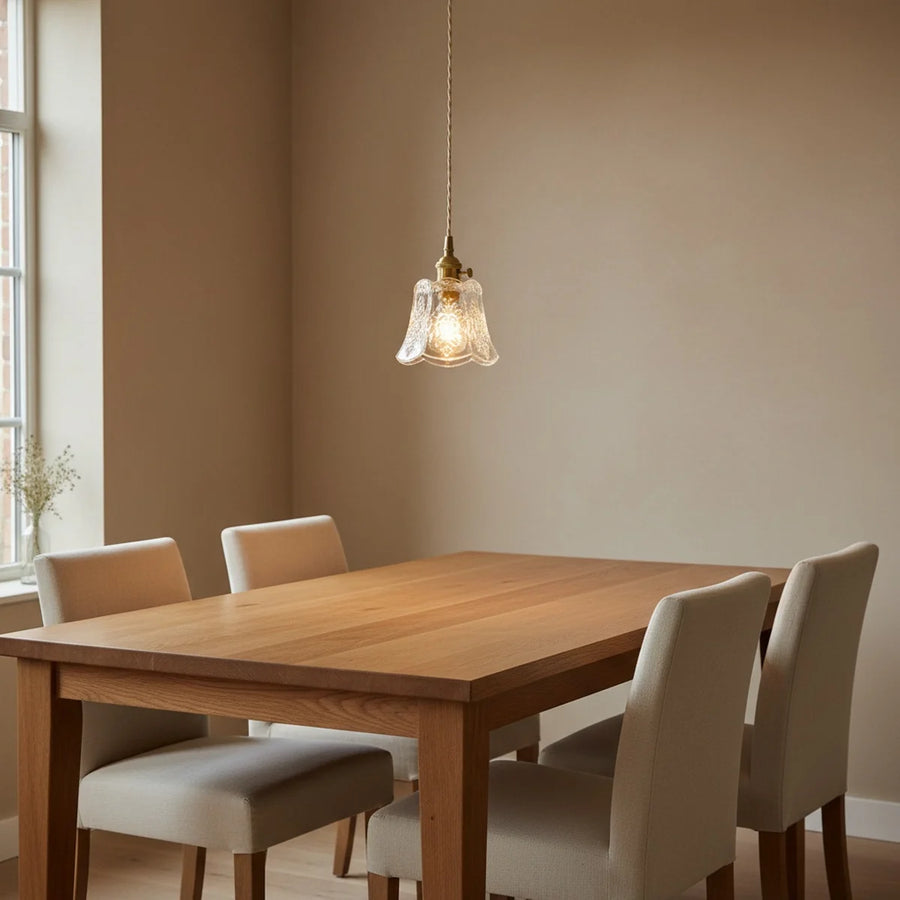

Chandelier height above table: the proportions

The height to hang dining room chandelier and pendant fixtures is only half the story; diameter counts as much. Aim for a fixture about half the width of the table, keeping 8 to 12 in (20 to 30 cm) between its edge and each edge of the top: a 35 in (90 cm) wide table takes a 16 to 20 in (40 to 50 cm) model. On a long table, divide the length into as many equal parts as there are pendants and center each one on its part. A 71 in (180 cm) table with two pendants places them 18 in (45 cm) from each end, 35 in (90 cm) apart. If the electrical box is not above the table, a swag hook in the ceiling, directly above the center of the table, lets you offset the pendant and run the cord across.

Flush mount, pendant or chandelier: choosing by room

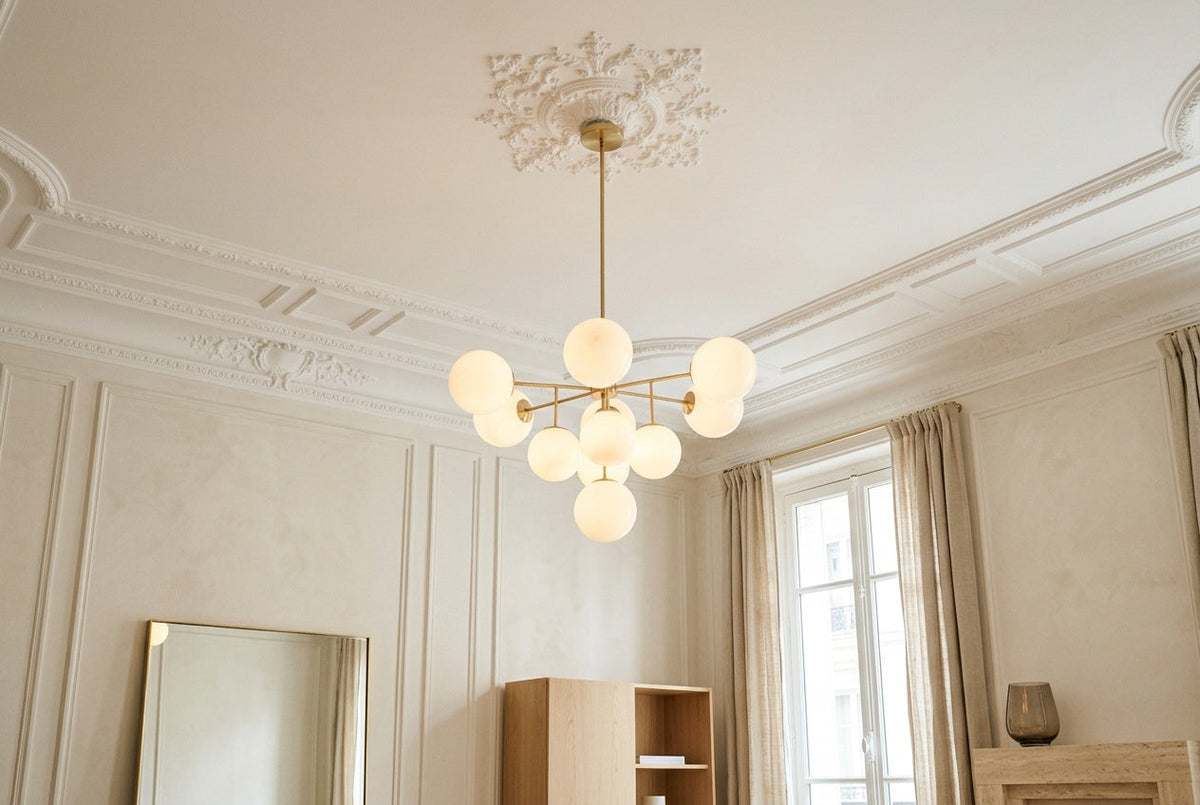

Under an 8 ft (2.40 to 2.50 m) ceiling, ceiling lights mounted flush light the room without lowering it. Higher up, or above a table, pendant lights create a focal point. Chandeliers come into their own from about 8.5 ft (2.60 m) of ceiling height, in a living room or dining room.

For diameter, count 16 to 20 in (40 to 50 cm) in a room of 110 to 130 sq ft (10 to 12 m²), 20 to 28 in (50 to 70 cm) between 160 and 215 sq ft (15 and 20 m²), and more than 28 in (70 cm), or several sources, in a living room over 270 sq ft (25 m²). A single ceiling point rarely lights a whole room well: add floor lamps and low lamps for layered light.

Lumens, kelvins and dimmers: tuning the light

Count roughly 10 to 15 lumens per sq ft (100 to 150 lumens per m²) for general lighting in a living room or bedroom, and 25 to 30 lumens per sq ft (250 to 300 per m²) in a kitchen. A 215 sq ft (20 m²) living room therefore needs 2,000 to 3,000 lumens, shared between the ceiling and the accent lamps. Choose 2700 K for warm light in living spaces, 3000 K for the entryway and bathroom, 4000 K for a countertop.

A dimmer changes how you use a dining room pendant, from dinner to a low background glow. Check that the LED bulbs are dimmable and that the dimmer is LED-compatible, or the light will flicker or buzz.

Mistakes to avoid

• Letting the fixture hang by its wires during the connection.
• Fixing a heavy model into drywall alone.
• Hanging a pendant too high above the table: the light spreads out and dazzles the guests.
• Choosing a chandelier too big for the room, or too small for the table.
• Exceeding the bulb wattage stated by the manufacturer.
